Automatic Security Revolving Heavy Duty Fail Secure Full Height Turnstile Gate For Prison Main Gate
Product description
*Full height turnstile is often used for high security access control solutions.
*The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
*Full height turnstile is ideal for both indoor and outdoor settings.
*It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
*It is very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the power off.

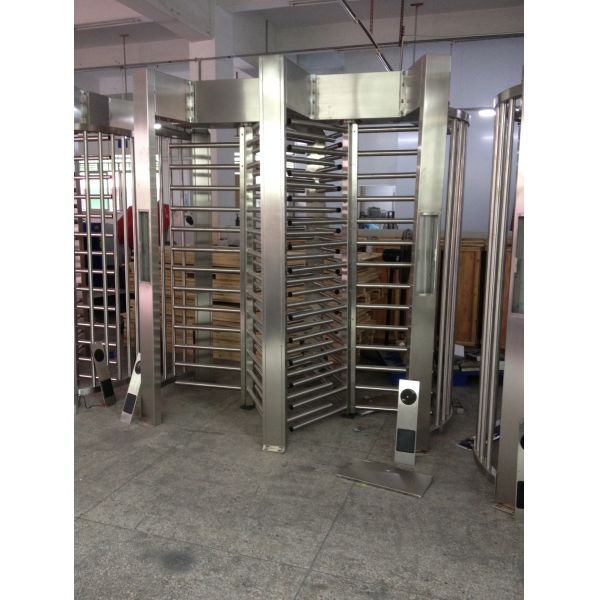

Product Photo
Functions & Features
1. 304 stainless steel housing, can be customized look;
2. With clear indication of the access direction,intuitive LED traffic light indicates can pass or closed traffic;
3. With a unique drive system,make turnstiles at zero lock, unlock more accurate and reliable;
4. When reading a valid card, the pedestrian just need to gently push the turnstile.
5. The revolving door rotated 90/120 regrees each time.
6. Automatic reset fuction, when reading card,uesr did not pass through the passage within the stipulated time,
the system will automatically cancel the access privileges, and the passing time can be set by the management staff;
7. Unified stabdard Interfaces,mounted with a variety of writing and reading equipment,easy for system intergration.
8. When power off, it can be free access for two ways.
When power on, it will lock automatically, to quickly organize evacuations in case of emergency;
9. Read the card with memory and without memory function: Users can be set via the turnstile mainboard accordng to their needs.
Technical specification
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Max flow rate | 25 to 30 person per minute |
| Arm length | 550mm (default) |
| Lane width | 600mm (default) |
| Working temperature | -20°C~60°C |
| Current | 3A |
| Control circuit | DC24 |
| Working humidity | 0~95%RH |
| Arm Diameter | 38mm |
Workshop photo
Packing photo
How full height turnstile access control system works
Cases reference
